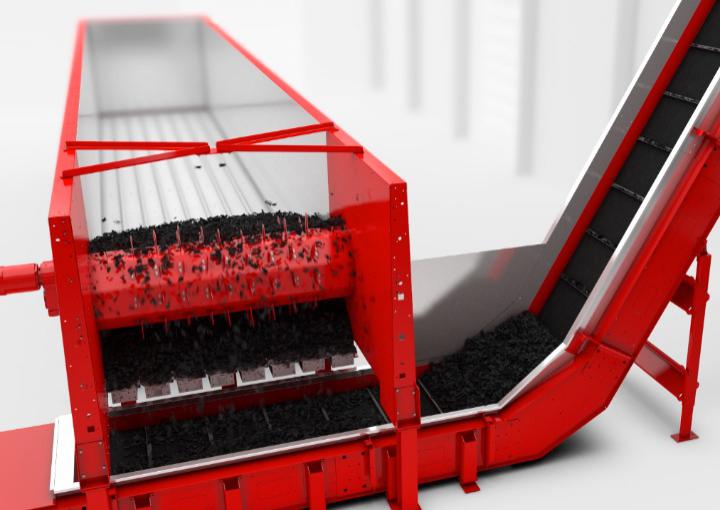

MultiFeeder BUNKER SYSTEM

This latest bunker system innovation from Westeria^® is now an even better fit for companies that require a bunker system that can meet their individual needs. With its sophisticated modular principle it satisfies the various different bunker system requirements which exist. The main highlight of the new MultiFeeder bunker system is its linear transfer of the feed material. As a result, this bunker system takes up incredibly little space and can be easily integrated into existing systems. The bunker system comes in 4 designs. Depending on the material to be processed, we can offer you the MultiFeeder bunker as a chain conveyor, slat conveyor, belt conveyor or with pusher plates. Across all bunker designs, you choose between a 1,200 mm, 1,600 mm or 2,000 mm operating width, with a maximum bunker length of 12 metres. Regardless of whether you wish to process light materials such as film/PET bottles, dry piece goods such as paper/cardboard packaging or sharp-edged or hot materials - you cannot go wrong with the MultiFeeder bunker system from Westeria^®

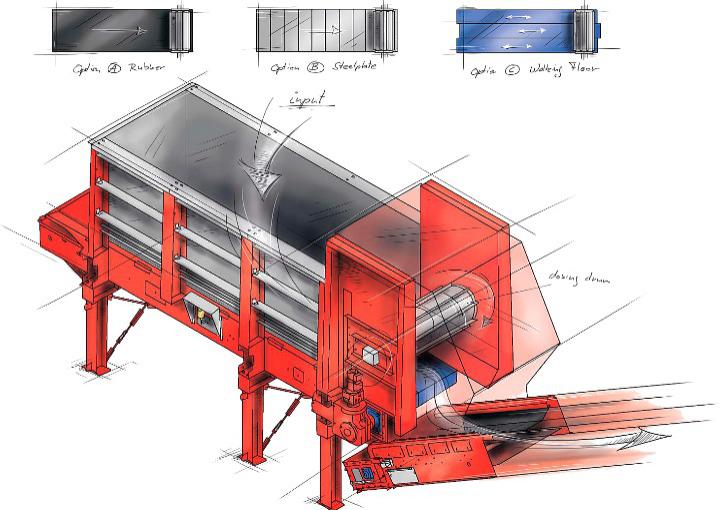

Available in 4 different designs : belt conveyor, chain belt conveyor, slat conveyor and with push floor

Performance

• The whole system is strictly conceived according to the building kit principle
• All bunker models can be quickly and easily disassembled into their individual modules, making it possible to be shipped in a standard ISO sea container
• Due to the modular construction the bunker can be flexibly extended and therefore has a high value retention
• Bunker volume range from 10 m³ to 40 m³ from the same construction elements
• Optimum usage width in relation to the outer width
