FORREC : TB

เครื่องบดย่อยแบบ 2 เพลา

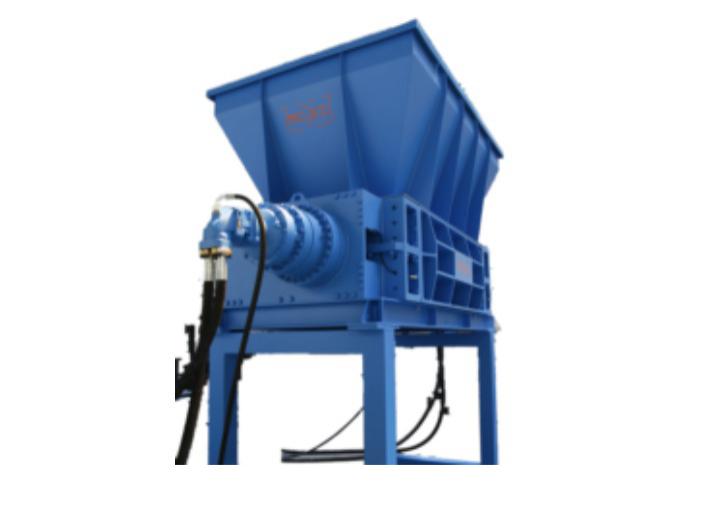

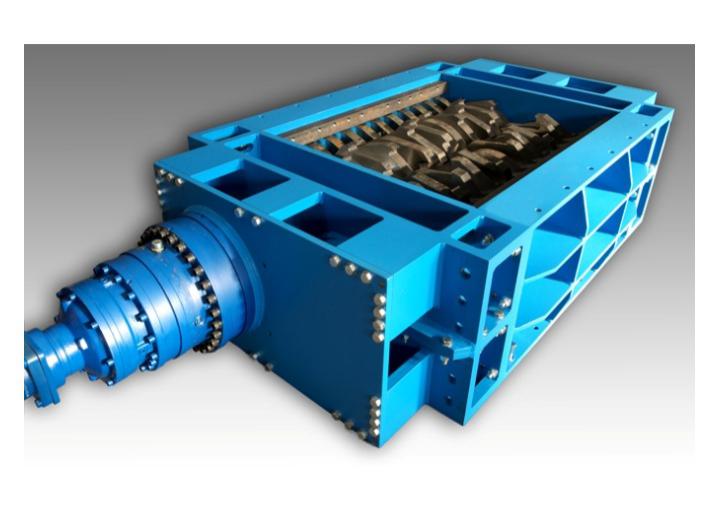

The double shaft shredder are projected to provide a precise volumetric reduction, with partial control of the output fraction. The treatment without screen allows high material flows.

Technologies:

  • Low number of rotations (10-12 rpm)
  • Dual shaft system with independent engines and reducers
  • Configurable automatic gear reversal
  • Bearings outside of the cutting chamber
  • Automatic greasing managed by PLC
  • Use of high quality steels

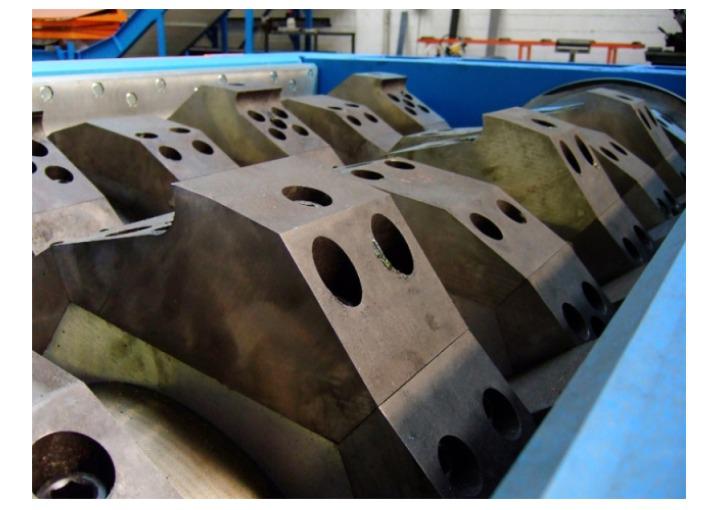

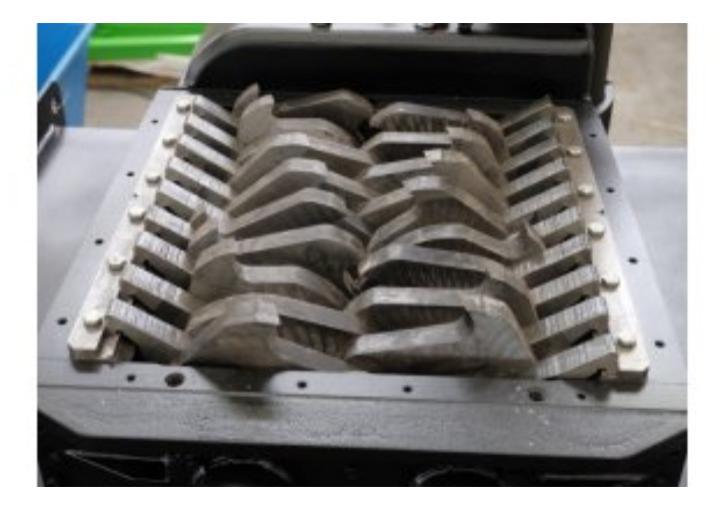

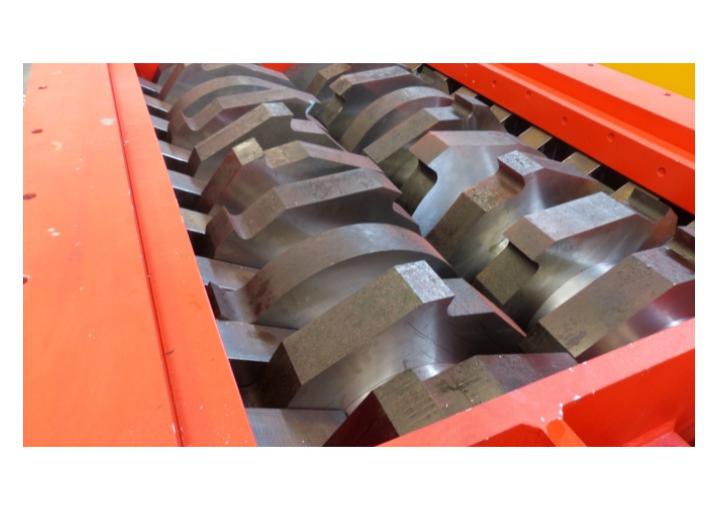

  • Configurable blades for thickness and number of teeth

Model : TB1300

Overall Dimensions : 3400 x 1500 mm H=3100 mm

Cutting chamber dimensions : 960 x 1260 mm

Weight : 8000 Kg

Motor drive : 2x22 kW / 2x30 kW / 2x37 kW

Version : hydraulic

Blades : standard welded on shaft

Blade thickness : 100 mm

Applications:

  • Plastic
  • Wood
  • Automobile/truck tyres
  • Paper/cardboard
  • Electrical Wires
